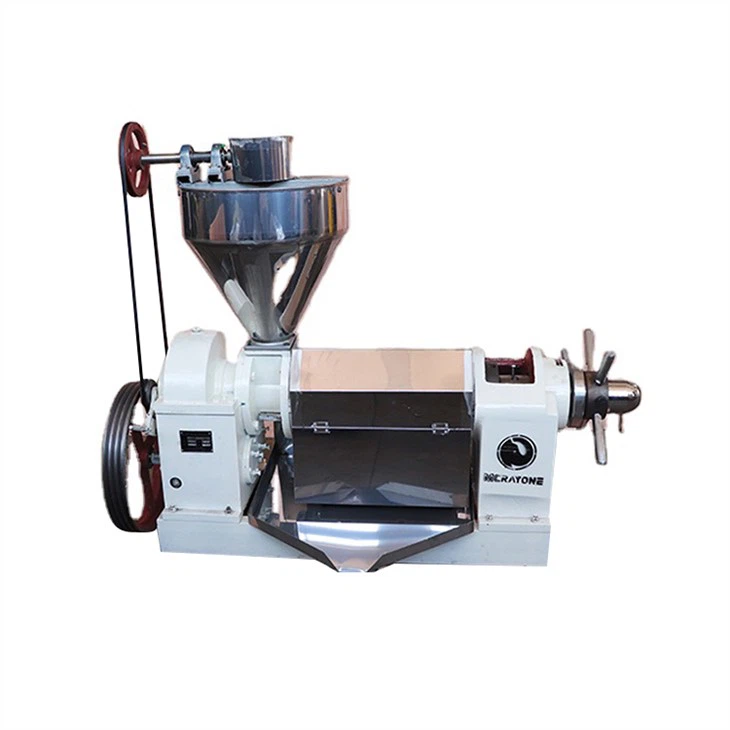

peanut oil press

peanut oil extraction machine is hopper, gear box, screw axis,combined pressing cage, gearbox and machine base. This type of press oil machine can provide the most efficient oil extraction rate and would be easy to operate. Most important of all, the reasonable structure allows flexible oil pressing capacity, Our press oil machine is designed in small size to save space of oil processing. Every part is made with premium quality materials. peanut oil press has high oil yield, and low oil residual rate. In addition, we can supply customized machine based on the specific requirements. It is suitable for sunflower seeds, castor, flax seeds, sesame, soybeans, etc.

Features

1. product description

peanut oil press is hopper, gear box, screw axis,combined pressing cage, gearbox and machine base. This type of press oil machine can provide the most efficient oil extraction rate and would be easy to operate.

Most important of all, the reasonable structure allows flexible oil pressing capacity,  Our press oil machine is designed in small size to save space of oil processing. Every part is made with premium quality materials.

peanut oil press has high oil yield, and low oil residual rate. In addition, we can supply customized machine based on the specific requirements. It is suitable for sunflower seeds, castor, flax seeds, sesame, soybeans, etc.


1

2. Video introduction

peanut oil press is to use the constant advance of the pressed screw in the feed embryo and the change of the space capacity in the press chamber from large to small, and to be subjected to great extrusion pressure, so as to extrude the oil from the feed embryo and get it out from the slot and the ring.

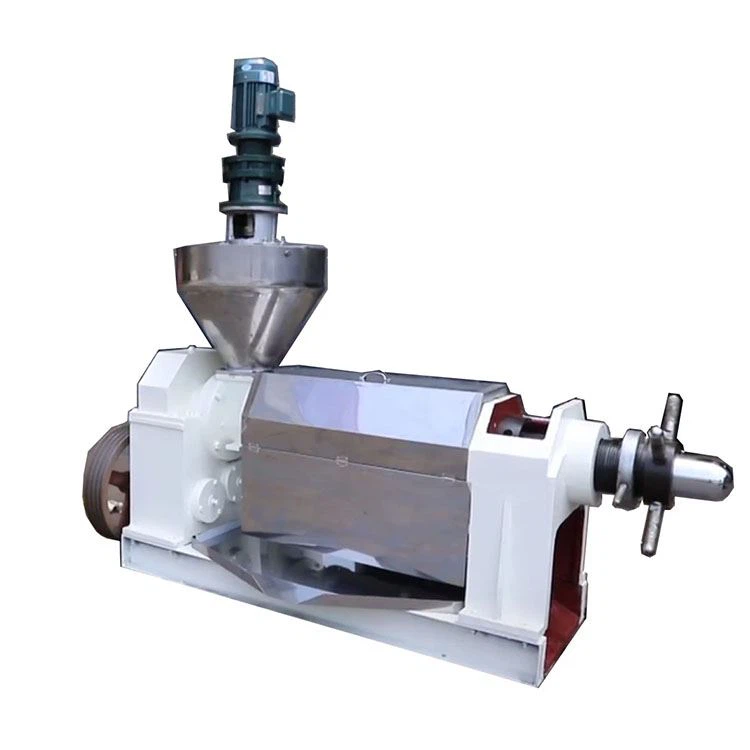

3. peanut oil extraction machine parameter

Item

Specification

ZX85 Screw Oil Press



Speed: 60-80   kgs/h

Capacity: 1.4-2   T/ 24hrs

Power: 5.5   kw-4P

Size:   1200*400*900mm

Weight: 260 kgs

ZX105 Screw Oil Press



Speed: 150-200   kgs/h

Capacity: 3.5-5   T/ 24hrs

Power: (7.5-11   kw)-6P

Size: 1600*700*1350mm

Weight: 530 kgs

ZX125 Screw Oil Press



Speed: 210-300   kgs/h

Capacity: 4-7   T/ 24hrs

Power: 15 kw-4P

Size:   1850*700*1350mm

Weight: 580 kgs

ZX128 Screw Oil Press



Speed: 300-375   kgs/h

Capacity: 7-9   T/ 24hrs

Power: 15 kw-6P

Size:   2000*800*1170mm

Weight: 720 kgs

ZX130 Screw Oil Press

Speed: 450-500   kgs/h

Capacity: 10-12   T/ 24hrs

Power: 18.5   kw-6P

Size:   2010*800*1380mm

Weight: 820 kgs


oil press machineHb079ffbee77d402ab52dd2771d738da3L

4. Features

The characteristics of the screw oil press is a continuous oil press device that uses a screw shaft to rotate and push the billet in the press cage while extruding into a cake and extruding grease. Compared with the "hydraulic press", the characteristics are: continuous production, large processing capacity of a single machine; suitable for a variety of oils; dynamic squeezing, friction heating, short squeezing time, high oil yield; thin cakes are easy to crush; low operating intensity . Disadvantages are relatively large energy consumption; many consumable parts, high mechanical failure maintenance requirements; greater thermal influence of oil cakes, etc

2


5. Detailed introduction of oil press

1.Feeder

Composed of feeder feeder fange etc

2.Stand

Composed of base,stand,screw nut.

The base is the basic component for he assembling and installation of the ebte o miller. Besides supporting the mother ant the stand is also a cookie outlet.

3.Press cage

Composed of upper and lower pressing cagos, roll bar, bar, pressing ring, cake output ring and pressing screws etc

4.Screw axis

Composed of screw axis, pressing screw.cake guide fing pres nut,adjusting boit and planar bearing,etc

5.Gera Box

Composed of gear box, cover cylinder gear, driving axis.

olling beaning and trangle belt wheel, etc.

Oi can be added when the olil adding screw on top of the gear box is discharged.

Likowise, ol can be reliesed when the ol release screw on the bottomis removed

3

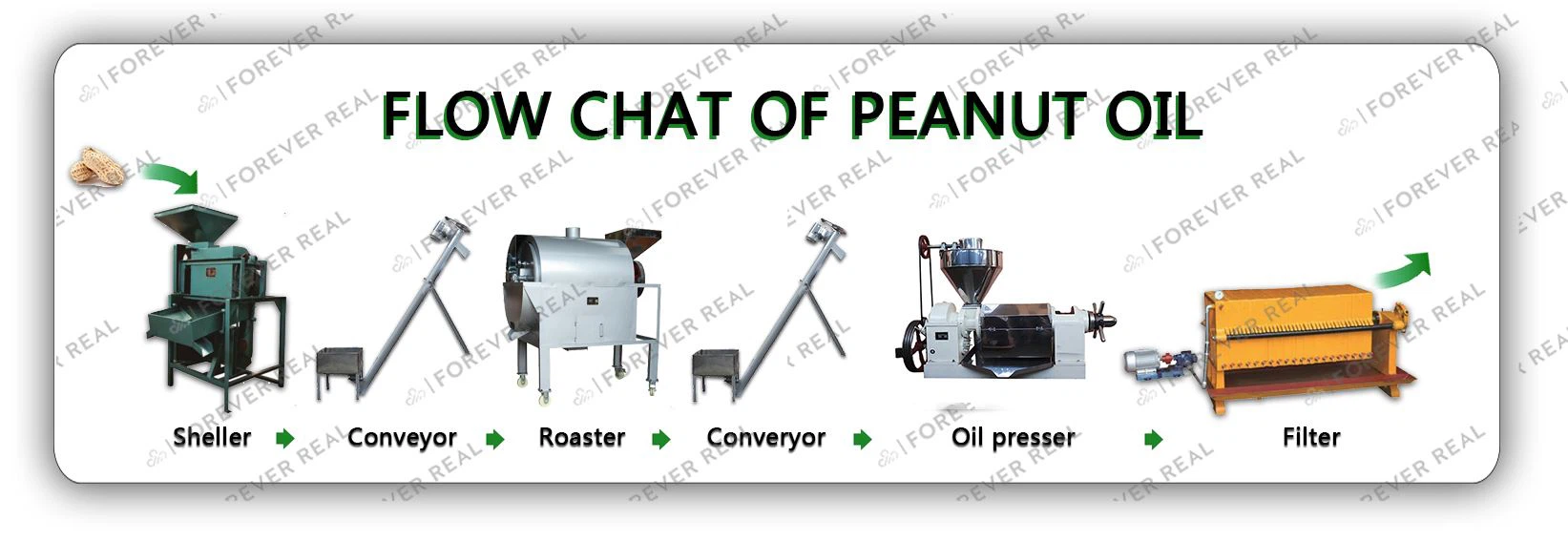

6. Equipment flow chart

The following is the  peanut oil extraction machine work flow chart of the entire equipment. Professional personnel can make a plan that suits you according to your production, raw materials, plant size, budget and other needs.

1111

7. Why choose us

A: We are a factory with competitive prices

B:The factory has a history of 40 years, has rich manufacturing experience and understands market demand

C: Understand the needs of various countries for products and give you professional planning solutions for hot products

D: Exported to more than 20 countries around the world, and has agents and after-sales outlets locally

E: Our products are unanimously loved and praised by customers

F: We have a strong new product design team, marketing team, after-sales team, installation and operation team, with an average of more than 4 years of experience in the company

G: We have a very complete product series: oil press, oil press production line, oil refinery and some supporting equipment


8. certificate

202010091310484949976c1b35494d94bcc4ed0587d194

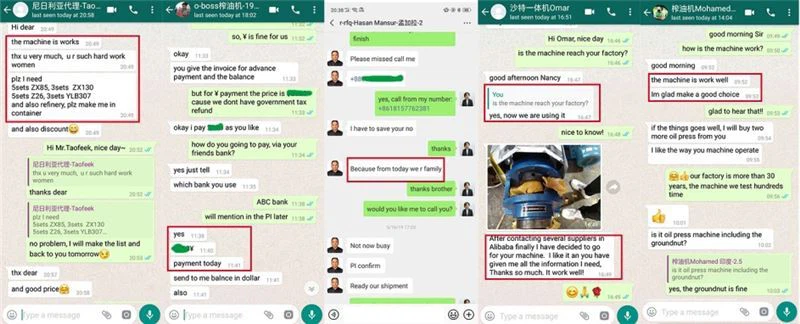

9. Customer evaluation

Our aim is to serve each of our customers with high-quality products. From order placement, logistics to after-sales, there will be regular follow-up visits by relevant personnel. Has been consistently praised by customersThe following is a screenshot of customer feedback.

20201009115228256aab1d093740f898525d4d33cbc24d
